Washed Sand for Bedding and Backfill on Texas Clay

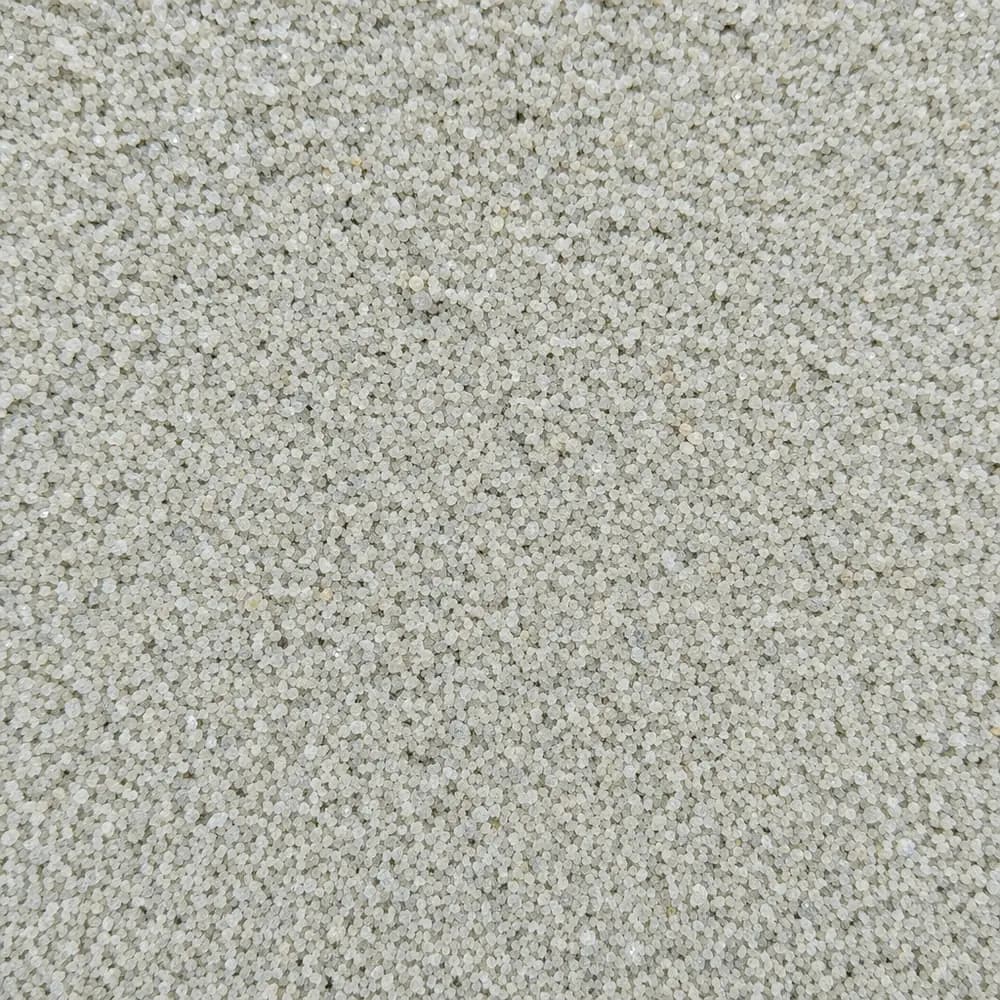

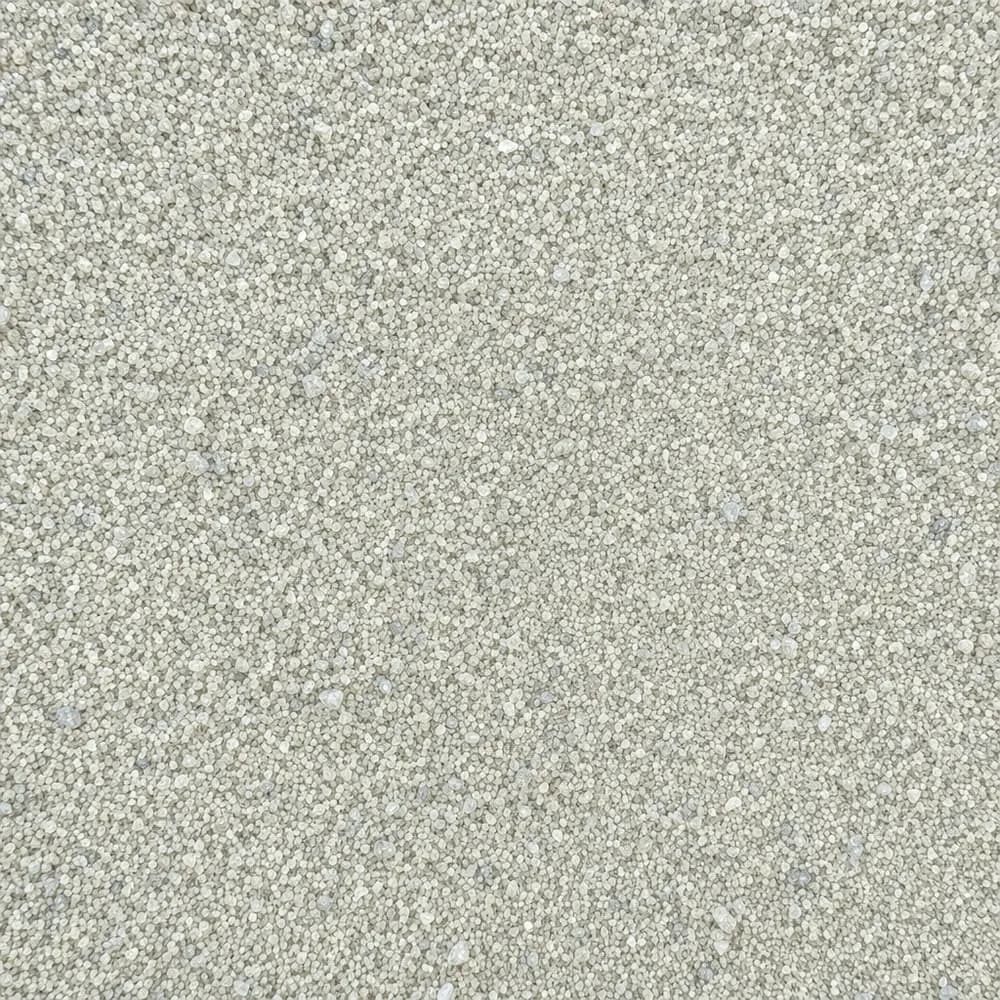

Black gumbo clay is the reason most of these orders exist. It swells through a wet week, shrinks back through August, and it will not flow into a trench or sit level under anything. Dig a line for a water service or a conduit run across the Blackland Prairie and what comes out is heavy, sticky and useless as backfill around a pipe. Washed sand is the clean coarse material that goes in instead: sharp-grained, screened, and processed to take the clay, silt and organic debris out of it.

The trench that has to be backfilled without dragging clay back in

This is the job it gets bought for most. A pipe, a conduit or a cable sitting in a trench needs to bear evenly along its whole length and be surrounded by material with no rocks and no lumps in it. Clay spoil gives it neither. It goes back in as clods, bridges over voids, then settles a year later and leaves the line taking point loads in places nobody can see.

Coarse washed sand flows into the space around a pipe and under its haunches, supports it evenly, and does not carry anything abrasive against a coating. The same behavior makes it the material for post holes, forms and any confined space where fill has to reach the bottom rather than hang up halfway down.

The second big use is concrete and mortar work, where a washed, consistently graded sand is the aggregate. That is what most people mean when they call it concrete sand.

How washed sand behaves when gumbo clay swells around it

Two things to know about using a clean sand on ground that moves. The first is that sand is the yielding layer in a build, not the strong one. It transfers load and it levels, it does not hold anything up. On clay that changes volume, the strength has to come from a compacted base and from the drainage plan, with the sand doing the bedding job on top.

The second is drainage. Water passes through coarse washed sand readily, which is why it works in a trench, and it does not hold moisture the way a fine or silty sand does. But drain into a clay trench with nowhere to go and you have built a sump. A sand-filled trench running downhill past a slab will carry water to the low end and hold it against whatever is there. Give the line an outlet, or use a drainage stone where the water needs to keep moving.

Lifts, water and the compactor on a shed pad

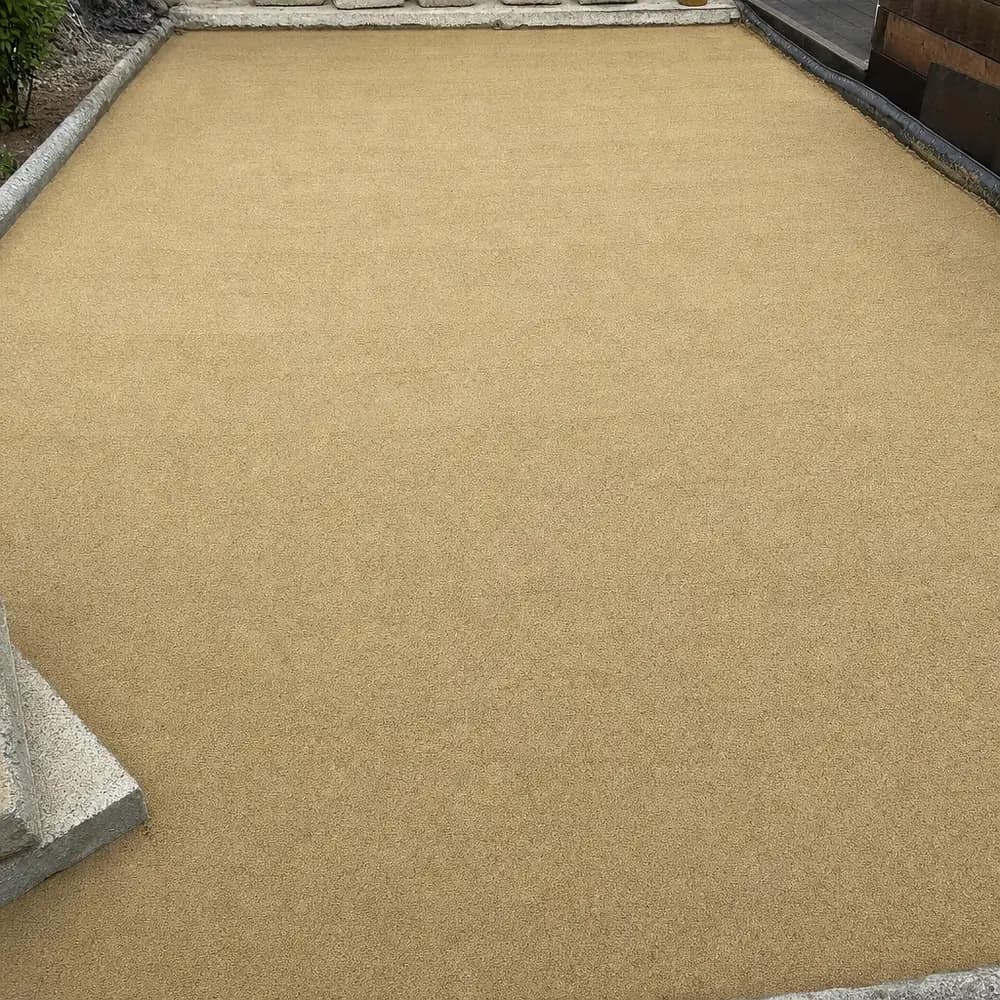

Where a shed or a small garage pad is going up, the sand is one layer in a stack and it is worth being clear which. The structure comes from a compacted base such as Flex Base over shaped subgrade. Sand goes above that as a thin screed if pavers or slabs are being set, usually about an inch to an inch and a half, or it goes below a slab as a leveling course.

Place it in shallow lifts rather than one deep drop, and compact each one. Coarse sand compacts best slightly damp, so a light watering between passes does more than extra passes do. Do not compact a screed layer under pavers, because that course is meant to stay loose so the units can be set into it. Confine the sand on all sides. Unrestrained sand at a free edge will creep out under load and the pad will settle at the perimeter first.

Under a downspout, sand is the wrong answer

Worth saying plainly, because it is a common order. A downspout splash area takes concentrated roof water falling from height. Sand scours out under it within a few storms and you are left with a trench at the base of the pipe and a fan of sand across the lawn.

Stone is the material there. Something in the 3/4" Crushed Stone or Drain Rock range has the mass to take the impact and the voids to let the water through, and it stays where you put it. Keep the sand for work that is buried or confined.

Two other materials on the order form that look like the same thing

Three products in this catalogue look similar in a photo and behave differently in the hand.

Rule of thumb: if the layer must stay workable and drain, coarse washed sand. If it has to be smooth and fine, mason sand. If it has to set up firm under paving, screenings.

A 10 by 14 shed pad and 28 feet of wall backfill, in tons

Two hypothetical jobs, with the arithmetic visible.

A screed course under a 10 by 14 foot shed pad, at two inches: 10 x 14 = 140 square feet. Then 140 x 2 ÷ 12 = 23.3 cubic feet, and 23.3 ÷ 27 = 0.9 of a cubic yard. This site publishes around 2,700 lb per cubic yard for mason and washed sand, about 1.35 tons per yard, so that is close to 1.2 tons.

Backfill behind a 28-foot wall, a foot wide and three feet high: 28 x 1 x 3 = 84 cubic feet, then 84 ÷ 27 = 3.1 cubic yards, roughly 4.2 tons. Note that most retaining wall backfill is specified as an open drainage stone rather than sand, with sand used only where a designer has called for it, so check the detail before ordering for that job.

Both are examples, not installed work. Put your own dimensions through the sand calculator and keep the five percent it adds by default if the base is uneven.

What the yard needs to look like before the truck arrives

Quantity and date are chosen on this page, and delivery is arranged at checkout from your ZIP. Sand has one delivery-day quirk worth planning around: it is the material most affected by weather at both ends. Rain on a fresh pile adds weight and makes it clump until it dries out, and a high wind moves the dry top off an uncovered heap.

So pick a firm drop spot with clear truck access, as close to the work as the truck can safely get, and have a tarp ready to lay under the pile and another to throw over it. Avoid a drop on soft clay after a wet week, because a loaded truck will leave ruts that take a season to recover. If the access is tight or you are unsure which of the three sands your job wants, send the details through the contact page before you order, and Texas Rock Supply can go through it with you.
