#57 Limestone for Texas Drainage and Concrete Work

Water that cannot get away from a slab edge is what wrecks foundations on clay ground, and #57 Limestone gets bought across this state for one reason above all the others: it holds open space for water where the surrounding soil will not. The confusion that brings people here is with base rock. The two materials look similar in a photograph and behave like opposites in a trench.

#57 Limestone against the Flex Base it gets mistaken for

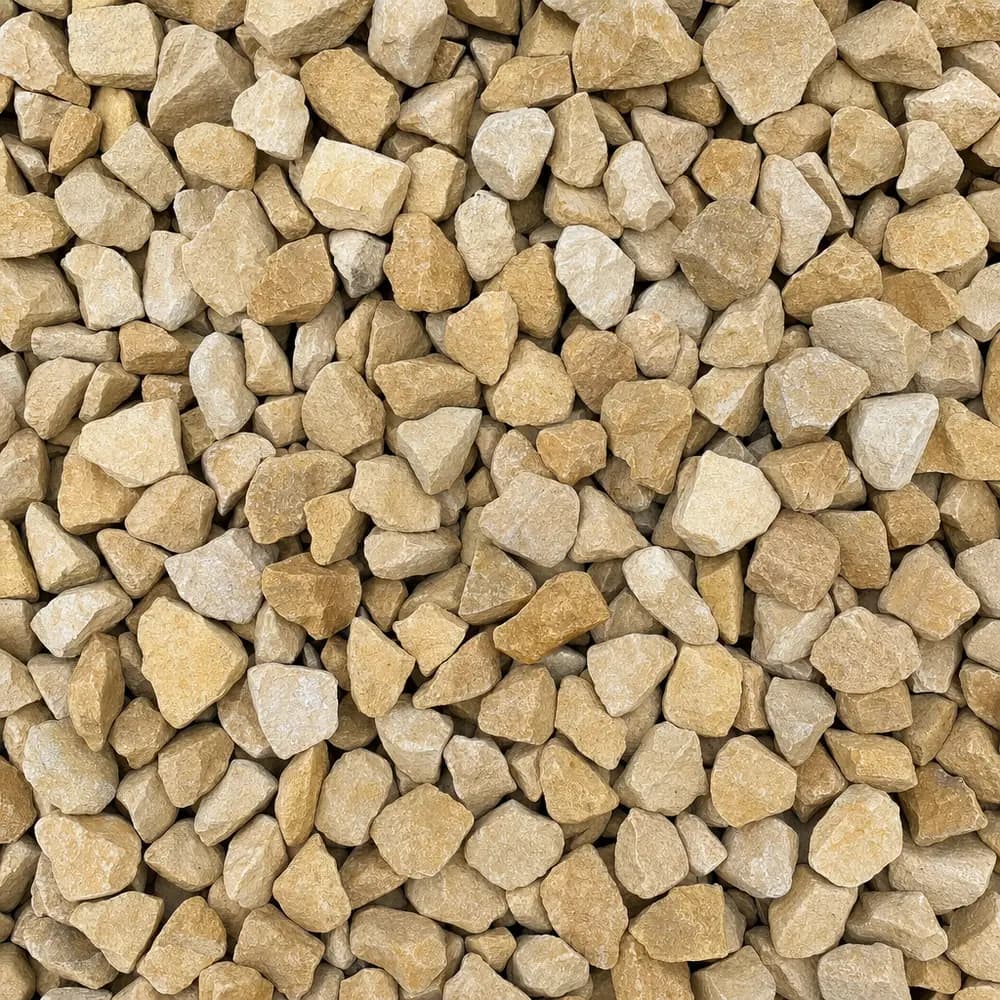

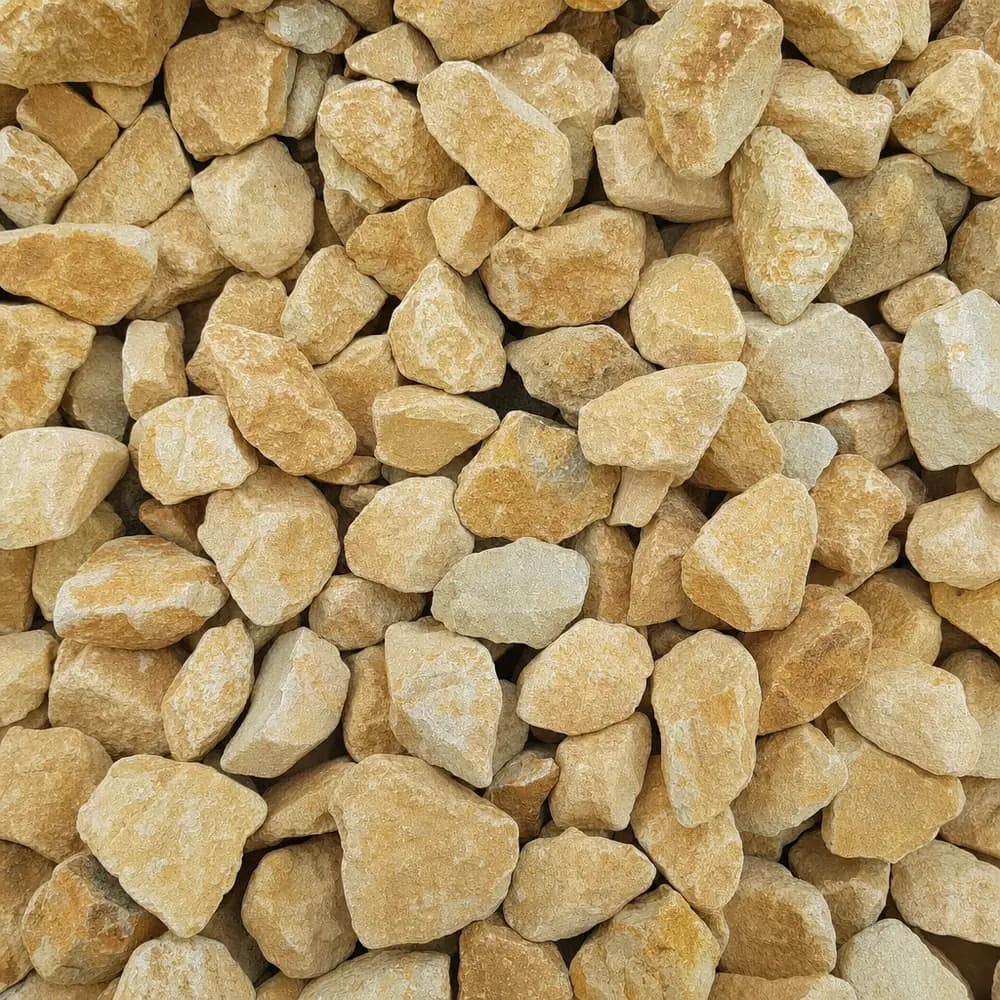

The stone is angular crushed rock, 3/16 inch to 1 inch, graded to the #57 sizing. That grading is the whole point. The pieces sit in a narrow size range, so when they pile together they touch at their corners and leave connected voids between them. Water runs through those voids instead of sitting in the material.

Flex Base is the reverse. It carries every size from an inch down to dust, so the small material packs into the gaps and the layer locks solid under a roller. One material is built to carry weight and shed water off the top. The other is built to let water through and will never pack down hard. Buy the wrong one and either the drain silts up or the pad ruts under the first loaded trailer.

Order it when the job is about moving water

On black gumbo clay, drainage is a construction problem rather than a landscaping one, because saturated clay beside a slab changes volume and dries back again. The stone belongs anywhere a defined route has to carry water away from something that matters:

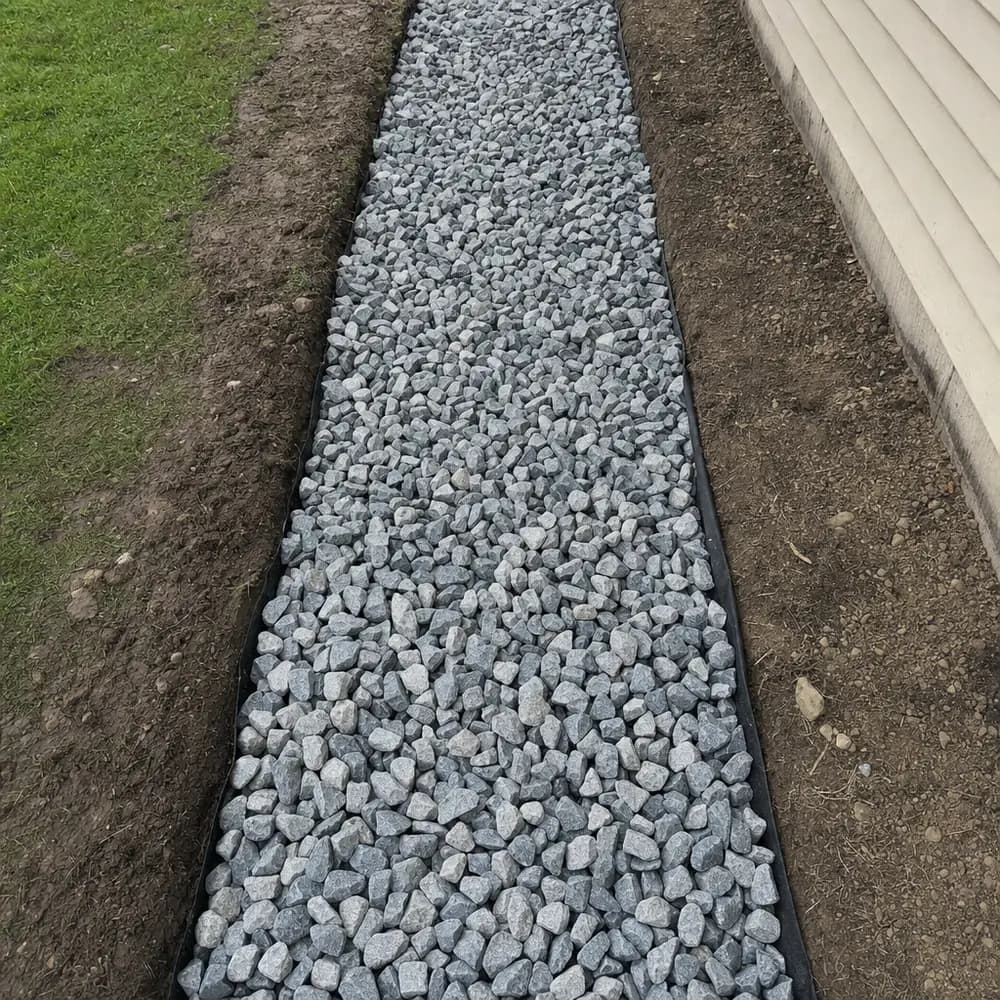

• French drains and curtain drains. Bed the pipe in the stone and surround it, so water reaches the pipe from every side rather than only from above.
• Slab-edge and perimeter drains. Run the stone in a trench that falls away from the foundation, not along it.
• Behind retaining walls. A drainage chimney of clean stone against the back of the wall gives water somewhere to go before it turns into pressure on the wall.
• Concrete aggregate. The same size range does duty as the coarse rock in a mix, which is why a batch plant and a drain trench ask for identical stone.
• Septic and field work. Clean graded rock is what gets specified for a drain field, in place of anything with fines in it.

Skip it when you want a surface that packs down hard

It will not compact. There is nothing in the gradation to fill the voids, so a driveway surfaced in loose #57 rock stays loose, spreads under tires and pushes into ridges at the edges. It also walks badly. An inch-sized angular stone rolls underfoot and turns an ankle.

Where the job wants a firm, walkable finish, use a material with fines in it: crushed limestone base for a drive, or walkway gravel for a path. Use the #57 rock underneath those, where the water goes.

A fifty-foot dry creek through Hill Country ground

A dry creek is a drainage route dressed up as a landscape feature, and the stone that does the work sits below what you see. Take a run 50 feet long, averaging 3.5 feet wide, at five inches deep: 50 x 3.5 = 175 square feet, x 5 ÷ 12 = 72.9 cubic feet, ÷ 27 = 2.7 cubic yards. This site publishes roughly 2,800 lb per cubic yard for #57 stone, about 1.40 tons per yard, so 2.7 x 1.40 comes to approximately 3.8 tons. This is a worked example rather than a real job; run your own dimensions through the tonnage calculator before you order.

Line the channel with fabric, set the larger stone at the outside of the bends where flow hits hardest, and give the run an outlet. A dry creek that ends in the middle of the lawn just moves the puddle.

Measuring the ring around a fire pit

Circles catch people out because you are buying the ring, not the disc. For a surround 12 feet across with a 5-foot pit in the middle: the outer circle is 3.14 x 6 x 6 = 113 square feet, the pit is 3.14 x 2.5 x 2.5 = 20 square feet, so the ring is about 93 square feet. At three inches: 93 x 3 ÷ 12 = 23 cubic feet, ÷ 27 = 0.85 of a cubic yard. Small numbers round up in practice, and the five percent the stone calculator adds by default covers the raking.

Under a pole barn pad: where the stone stops and the base begins

This is the base-versus-surface question in its clearest form. A pole barn or equipment pad on clay wants a compacted base course carrying the load, with open stone used only where water needs a path, typically a drainage layer under a slab or a trench around the perimeter.

For a 24 by 36 foot footprint at four inches: 864 square feet, x 4 ÷ 12 = 288 cubic feet, ÷ 27 = 10.7 cubic yards of stone. That is the drainage layer only. Compacted base underneath it is a separate order, and the two should not be swapped around or blended together.

Setting the tonnage and the drop before the truck turns in

Angular stone spreads more easily than it sounds, but only if it lands near the work. Mark the drop spot, keep the route to it clear, and think about whether the pile can sit on a tarp rather than on turf. Delivery is arranged at checkout by ZIP code once you pick a quantity and a date.

Work your area out first, keeping the five percent the stone calculator adds by default, then set the ZIP at checkout with Texas Rock Supply. If the job needs two materials, base in one place and open stone in another, send the layout through the contact form and get the split sorted before the load is scheduled.
